Junhao3 Laying Barge

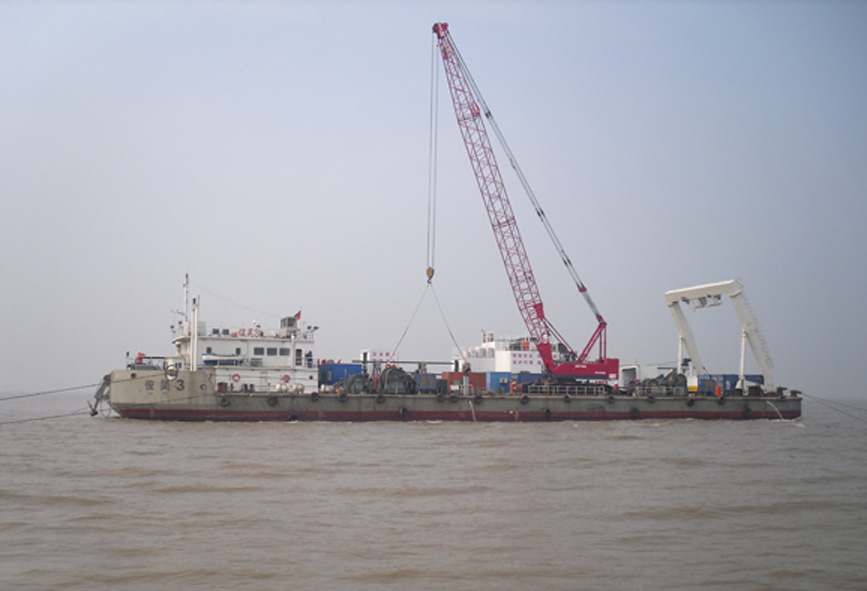

Pipe Laying Barge ‘Junhao 3’

   Junhao 3 is made for pipe laying which is specially designed. It can lay submarine pipeline, cable, dig channel, backfill, implement engineering service and goods transport.

   It can operate different underwater equipment, with a track crane of 150t for lifting operation and a pipe laying line on deck.

   Junhao 3 was built on January 24, 2007. It docks mostly at Tianjin port.



ZC: Register of Shipping of The People’s Republic of China

Nationality: Tianjin of China

Navigation Area: Inshore

Working Area: A1 A2

Main Parameters

Length.O.A:  75.5 meters

Breadth:     24.6 meters

Depth:       4 meters

Light Draught:             1.357m

Loaded Draught:             2.5m

Gross Tonnage:             2207t

Net Tonnage:               1853t

Loaded Displacement:        4359.5t

Light Displacement:          1205.2t



HullMaterial: Steel      Deck Material: Steel

Deck Type: main deck, top deck, lower deck and boat deck

Cofferdam Tank: 5         Structure: Crisscross keel



Ballast System:

Forepeak(C) : 400.15m3                     NO.1 Ballast Water Tank(P&S): 267.40 m3

NO.2 Ballast Water Tank(P): 169.17 m3       NO.2 Ballast Water Tank(S): 157.00 m3

Fuel Tank(P&S):237.08 m3                  Fresh Water Tank(P&S):544.04 m3

Total Volume of Pollution Tank: 2 m3         Total Volume of Oil Tank: 0.2 m3

Available Deck Area: 1000 m3                  Deck Load: 5t

Machine on Barge

Mooring System

Main Anchor:    ¢46 (one unit)

Fix Anchor:     35t (four set)

Fix Anchor:     60t (four set)



Safety Equipment

Life Raft: 6 QJF-B25      Life Buoy: 8 5566-I     Cable Throw Equipment: 2set

Fire Pump: 1(80ZWD50-32 emergency fire fighting pump),  2(80ZWD50-50 main fire fighting pump)

Marine Diesel Engine:3(400KW submarine diesel engine),  1(64KW submarine diesel engine)

                                  1(30KW submarine diesel engine)



Deck Gear

Gantry Crane:   35t (one unit)

Track Crane:   150t (one unit)

Pipe laying line(one Tensioner of 500KN, one A/R Winch of 500KN)

Other

Accommodation

Max. Berth:   84 persons (80 operators)

Navigation Aid

Navtex Receiver  SNX-300

Epirb           SEP-406

Search and Rescue Radar Transponder  TBR-600A

Communication

VHF/DSC Radio Installation   RH-50

MF/HF Radio Installation     SRG-1150DN

TWO-WAY Radio Telephone   TW-50

Fix

Fix-position GPS (one unit)
